Hermetically Sealed Wire Thermocouple & RTD Sensors

An IP67 wire sensor that is hermetically sealed for use in corrosive or wet environments.

This versatile multi-purpose sensor has been specifically designed for use in and to protect against corrosion in harsh or wet environments. It has a quick response time and can be easily cleaned. The impermeable PFA insulated flexible wire thermocouple provides exceptional resistance to oils, fluids, gases, and chemicals and is electrically isolated.

The tip contains the sensing connection, which is weld-sealed to give a continuous PFA coating along the entire length and provide an atmosphere that is airtight and moisture-proof.

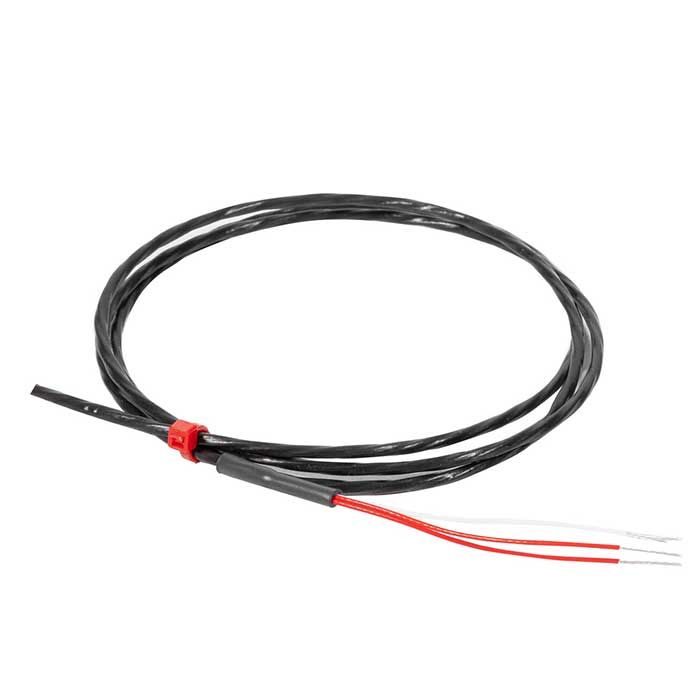

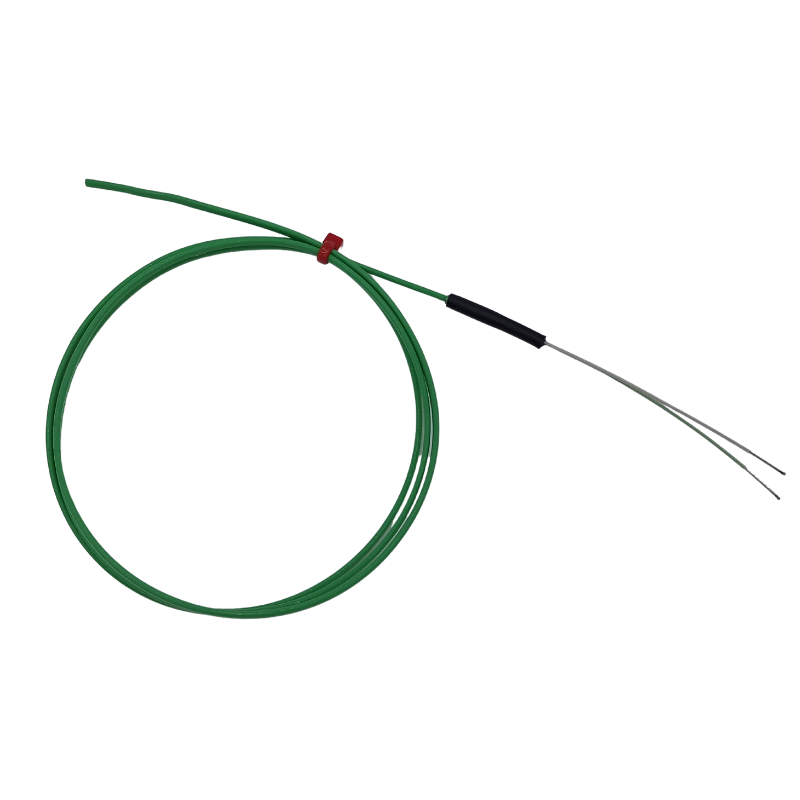

Available in IEC, ANSI and PRT calibrations, in 1,2 or 5m lengths, with bare tails or thermocouple plug termination.

Click below to view the various types:

IEC – more details

ANSI – more details

PRT – more details

  • Hermetically sealed airtight tip
  • Waterproof & suitable for insertion into liquids
  • Oil & Chemical resistant PFA insulation
  • For use in temperatures ranging from -75 to +260 Degree C
  • Electrically insulated tip tested to 1.0Kv as standard (can be tested at higher voltages)
  • Flexible 7/0.2mm stranded conductors (24AWG)
  • 1.5 x 2.3mm nominal wire diameter (thermocouple)
  • 2.6mm nominal wire diameter (RTD)

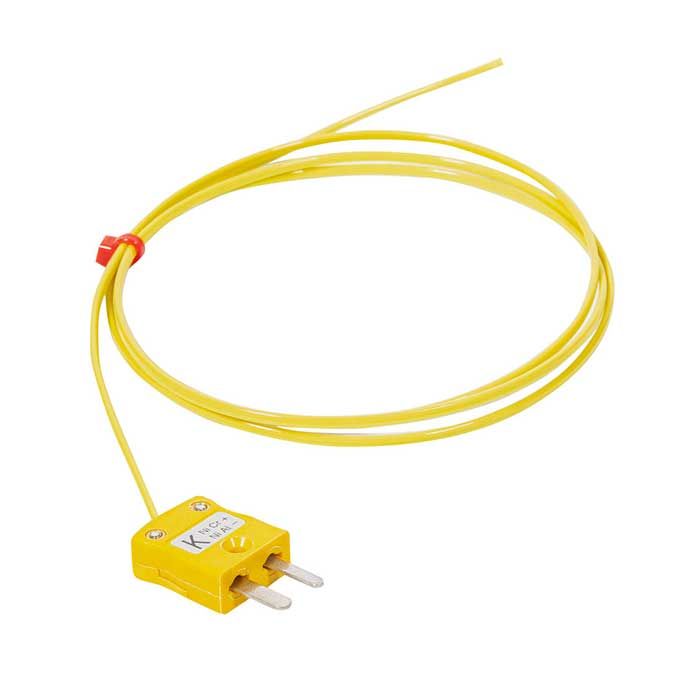

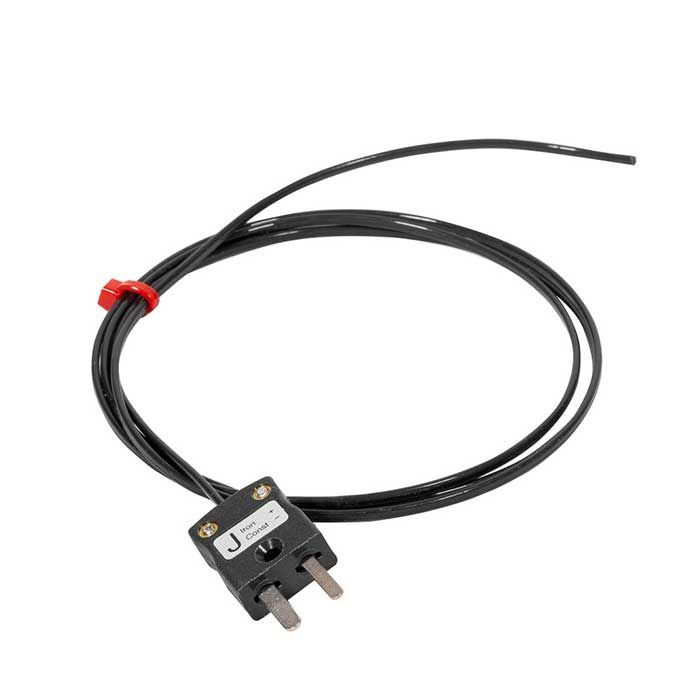

  • Available with standard tails or mini thermocouple plug terminations

Typical Applications

  • Pharmaceutical, Autoclaves and Sterilisation
  • Food & Catering
  • Environmental & Geothermal
  • Laboratory and Research & Development

Specifications

General Description               An IP67 wire thermocouple/RTD Sensor that is hermetically sealed for use in corrosive or wet environments
Sensor Type                           Hermetically sealed
Sensor Type                           K, J & T or RTD
Cable Length                          1, 2 & 5m
Cable Type                              PFA Flat Pair insulation (Thermocouple), 4 wire flexible 7/0.2mm stranded conductors (RTD)
Core / Strands                         7/0.2mm (24 AWG)
Termination Type Miniature flat pin plug colour coded in accordance IEC 584 or bare tails
Max. Temperature                 +260°C
Min. Temperature                  -75°C (Thermocouple), -30°C (RTD)
IP Rating                                 IP67
Important Information            Pressure tested at 40 PSI as standard
